YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor

Brand Name : YTO

Model Number : NLX804

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD14400

Payment Terms : L/C,, T/T, Western Union

Supply Ability : 50

Delivery Time : 45Days

Size : 4350x2170x2740mm

Tire : 11.2-28 / 13.6-38

Wheelbase : 2314mm

Min. ground Clearance : 430mm

Contact Now

YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor

The Introduction of YTO NLX804 80HP Tractor 4WD 80HP Small wheel Tractor

YTO-NLX804 wheeled tractor is high power vehicles with advanced international technologies in its development, featuring excellent performance, attractive appearance, wide vision, and strong adaptability. They have found wide applications in farming and transportation.
Powerful and green engine;
With European technologies, the transmission system can have synchronizer installed for non-stop and smooth gear shifting, thus improving the working efficiency.
Independently operated double-acting clutch easy to operate;
Independently operated LUK double-acting clutch, which is easy to operate, reliable and durable;
Pedal-operated hydraulic disc service brake saves effort in operation. The parking brake operated by the handle is safe and reliable.

YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor

Model	YTO-NLX804
Tractor
Type	4x4
Overall dimensions (LxWxH) (mm)	4350x2170x2740
Wheelbase (mm)	2314
Min. ground clearance (mm)	430
Min. operating mass (with safety stand) (Kg)	3675
Tyre spec. front / rear	11.2-28 / 13.6-38
Wheel tread, front / rear	1630-1960 / 1500-2100
Steering	Full hydraulic
Brake	Oil immersed, disk type
Diesel engine
Model	LR4B5-23
Type	Four cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L)	4.95
Rated power / speed (Kw) / (r/min)	58.8 / 2300
Max. torque (N.m) / speed (r/min)	270 / 1500-1700
Bore x stroke (mm)	108 x 125
Transmission
Gear shift, forward / backward	12 / 4
Speed range (Km/h), forward / backward	1.63-26.82 / 4.23-12.69
PTO power (Kw)	50
PTO rotation speed (r/min)	540 / 720 or 540 / 1000
Clutch	11-inch, dry, double action
Implement
Three-point linkage category	Three-point linkage category II
Tilling depth control mode	Combined draft, position control and floating control
Lifting force (KN)	16

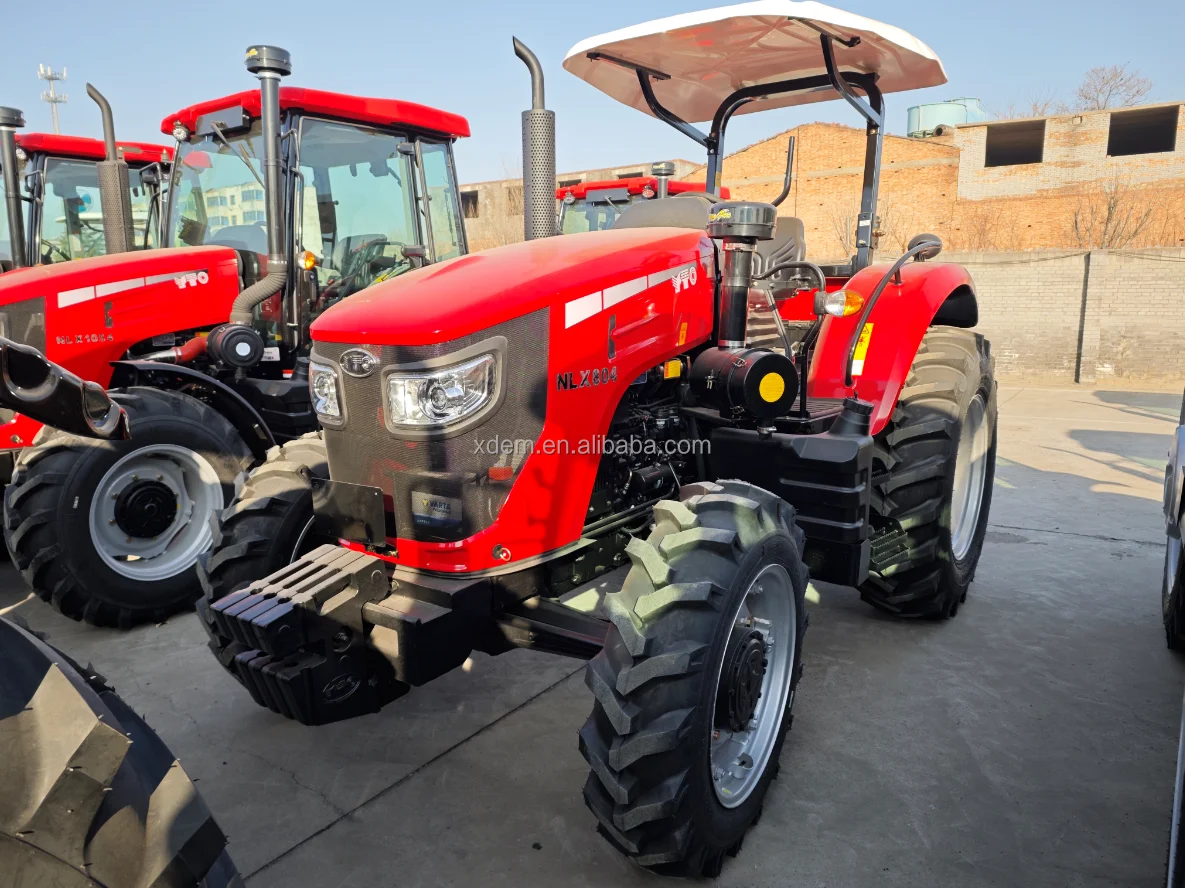

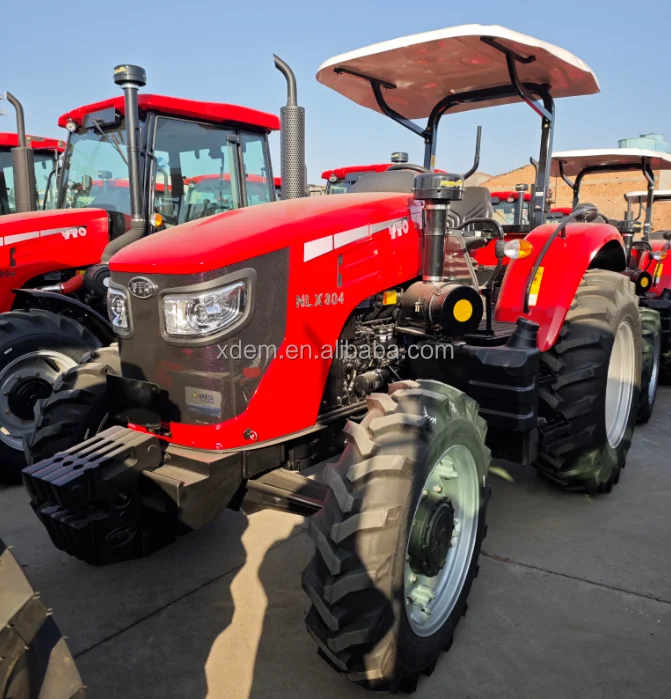

The Picture of YTO NLX804 80HP Tractor 4WD wheel Tractor

YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor
