Feature:
1. Machine adopts modular design, which can be quickly installed and disassembled on site, which greatly improves installation efficiency.
2. Boring bar is made of high-strength alloy structural steel, after repeated stress relief treatments, the surface is chrome-plated and polished, with high strength and not easy to deform.
3. It can realize horizontal installation boring, vertical installation boring, and end face milling on both sides of the hole.
4. Various forms of supporting and fixing devices meet the needs of different working environments. Supports: inline support, cross support, center support, floor support, self-aligning support and shaft end protection support, etc.
5. High processing accuracy, surface roughness can reach Ra3.2.
6. Axial automatic feed, equipped with multi-speed transmission device, output the most suitable feed for rough and finish machining.
7. It has the function of fast retracting tool, which is convenient and quick to operate.
8. The power system has hydraulic system and servo motor available as the power source, with strong cutting power and high stability of the whole machine.
9. Equipped with remote circuit control system, convenient operation and high safety factor.
10. Equipped with wireless remote control, 10 meters oil pipe, speed can be adjusted.
Application:
1. Marine shipbuilding and maintenance, petrochemical, iron and steel mining, power and heat and other industries,
2. Online repair of concentric holes in construction machinery such as excavators, cranes, forklifts, etc.;
3. Online machining of concentric holes in the base of large steel structures;
4. Boring of spliced holes for steam turbine holes;
5. Compressor cylinder line boring.
6. Ship rudder hole, stern shaft hole, etc.
Specification:
| Name | XDY-110 Portable Boring Machine |
| Model | XDY-110 |
| Max Bore Diameter Mm | 1300 |
| Min Bore Diameter Mm | 120 |
| Feed Stroke Mm (Standard) | 3000 |
| Boring Bar Mm(Standard) | 110*3000 mm |
| Boring Bar Speed Rpm | 0-45r/min (stepless speed regulation) |
| Motor Power Kw | 4.5 Kw |
| Power Type | servo motor |
| Feed Rate Mm | 0-3mm (stepless speed regulation) |
| End Face Device Feed | 0.1/0.15 |
| Depth Of Cut On One Side Mm | ≥ 3mm |
| Roughness | Ra3.2 |
| Roundness Mm | ≤0.02mm |
| Operation Method | automatic / manual |
| Host Weight Kg | 75 |
| Package | Fumigation disinfection plywood packing box |

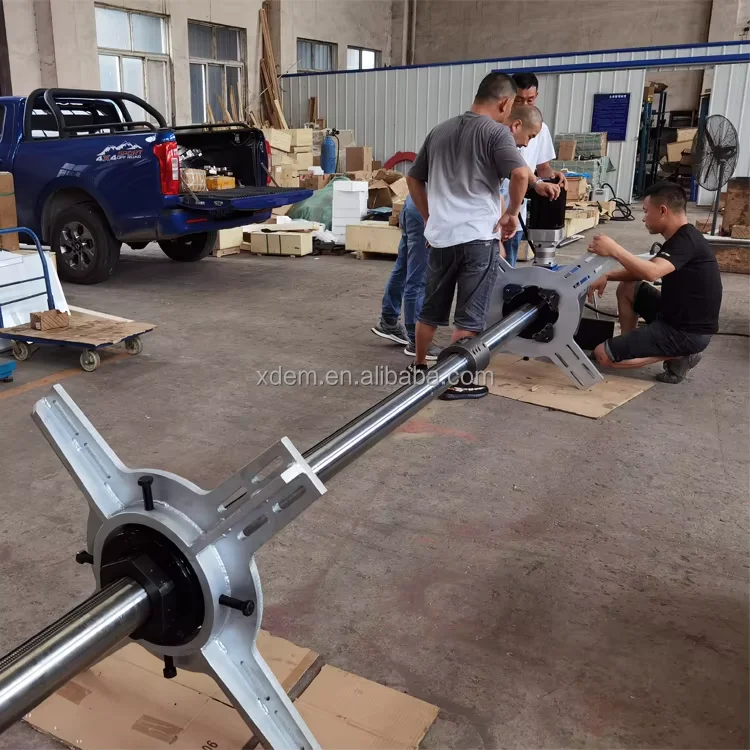

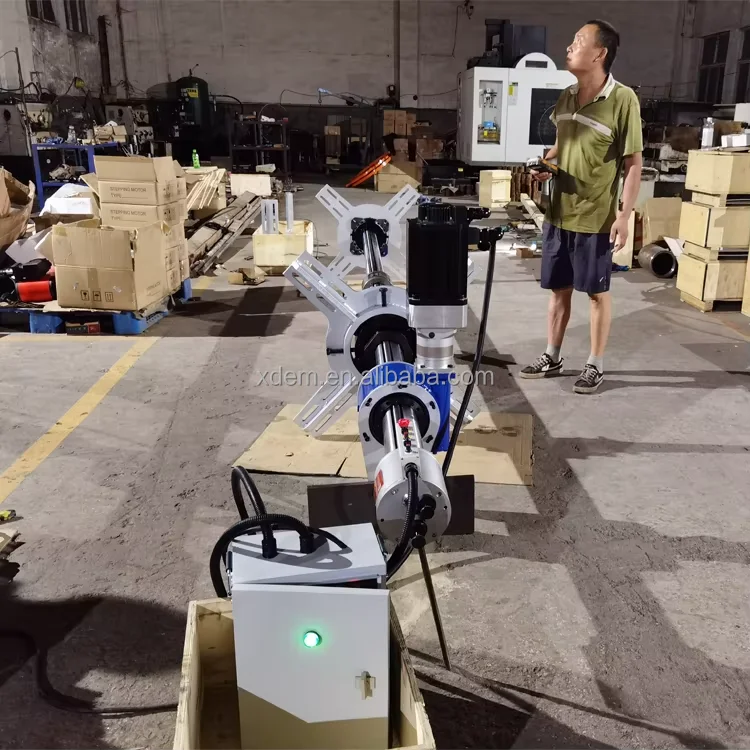

Product Photo:
